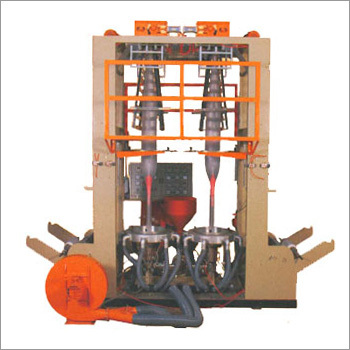

Twin Film Blowing Extruder

<< Previous   Twin Film Blowing Extruder

Product Code : 12

Product Specification
We are one of the prominent manufacturers, suppliers and exporters of a large assortment of Twin Film Blowing Extruder. These are machined in line with the International standards and offered in customized technical specifications. Our Twin Film Blowing Extruders are easy to install, simple to operate and have a long working life.

Salient Features:

  • Gas Nitrided Screw $ Barrel.
  • Heavy Duty Helical Gear Box
  • Internal Bubble Stabiliser
  • Higher Output Even For Smaller Size
  • Lowest cost of Power
  • Counsumption/ Kg. Output
  • AC Drive For Extruder
  • Control Pannel With Digital
  • Temp. Controller
We are leading manufacturer & exporter of double dies blown film blowing extruder in India.

Double Die Blown Film Extruders Specifications

EXTRUDER
FS-S45
FS-S50
FS-S45S
SCREW DIA(mm)
45mm
50mm
45mm
SCREW LD
27
27
27
GEAR BOX
Helical
Helical
Helical
MAIN DRIVE
10HP
20HP
15HP
HEATING ZONE
2No.
2No.
2No.
SCREW RPM
0-80
0-90
0-90
PEAK OUT PUT
42kg/hr
65kg/hr
55kg/hr
DIE
2No.
2No.
2No.
DIE SIZE
50mm
90mm
75mm
DIE TYPE
Spiral
Spiral
Spiral
FILTER
Candle
Candle
Candle
HEATING ZONE
7 NO.
7 NO
7 NO
TAKE OFF
2No.
2No.
2No.
NIPROLL SIZE
500mm
800mm
600mm
NIP DRIVE AC
1HP
1HP
1HP
GEAR BOX
Planeary
Planeary
Planeary
WINDER
2No.
2No.
2No.
SURFACE TYPE
Single Stn
Single Stn
Single Stn
WINDER DRIVE
Torque
Torque
Torque
CONTACTING LOAD(KW)
25kw
30kw
28kw
HEATING LOAD(KW)
15kw
15kw
15kw
PEAK OUT PUT KG/UNIT
2.2
2.6
2.4
