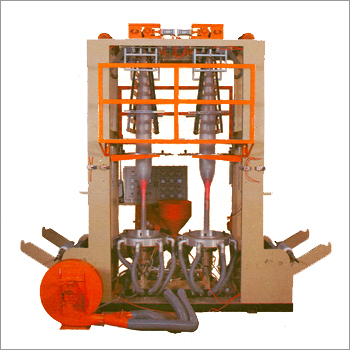

Double Die Extruder

Double Die Extruder
Double Die Extruder
Product Code : 06
Brand Name : FIVE STAR ENGINEERS
Product Description

With excellent knowledge about the market, our company is considered as the profound manufacturer and exporter of a wide range of Double Die Extruder. Used in plastic industry, this machine has control panel with digital temperature controller. To comply with changing technology we use optimum grade materials and components to manufacture this machine. We check this Double Die Extruder on construction and efficiency parameters to provide a flawless range to clients.

Features:



  • Maintenance free
  • Compact model
  • High operational fluency

Further Details:

We have been able to carve a niche for ourselves in manufacturing and exporting a large array of Double Die Extruder. These are rugged in construction and reckoned for their high performance, corrosion resistance, low power consumption and durability standards. Our Double Die Extruders are easy to install, user-friendly and need no maintenance.

Salient Features:

  • Gas Nitrided Screw & Barrel.
  • Heavy Duty Helical Gear Box.
  • Internal Bubble Stabilizer
  • Higher Output Even For Smaller Size
  • Lowest Cost Of Power
  • Consumption/Kg. Output.
  • AC Drive For Extruders.
  • Control Panel With Digital
  • Temp. Controller.
Double Die Extruder
  FS-D45 FS-D50 FS-D45S
Extruders
Screw Dia (mm) 45 mm 50 mm 45 mm
Screw LD 27 27 27
Gear Box Helical Helical Helical
Main Drive 10 HP 15 HP 15 HP
Heating Zone 2 No. 2 No. 2 No.
Screw rpm. 0-80 0-90 0-90
Peak out put 42 kg/hr 60 kg/hr 55 kg/hr
Die 2 No. 2 No. 2 No.
Die Size 65 mm 100 mm 75 mm
Die Type Sprial Sprial Sprial
Filter Candle Candle Candle
Heating Zone 7 No. 7 No. 7 No.
Take Off 2 No. 2 No. 2 No.
Niproll Size 500 mm 800 mm 800 mm
Nip Drive AC 1 HP 1 HP 1 HP
Gear Box Helical Helical Helical
Winder 2 No. 2 No. 2 No.
Surface Type Single Stn. Single Stn. Single Stn.
Winder Drive Torque Torque Torque
Connecting Load (Kw) 25 kw 28 kw 28 kw
Heating Load (Kw) 15 kw 15 kw 15 kw
Peak output Kg / Unit 2.2 2.6 2.4
